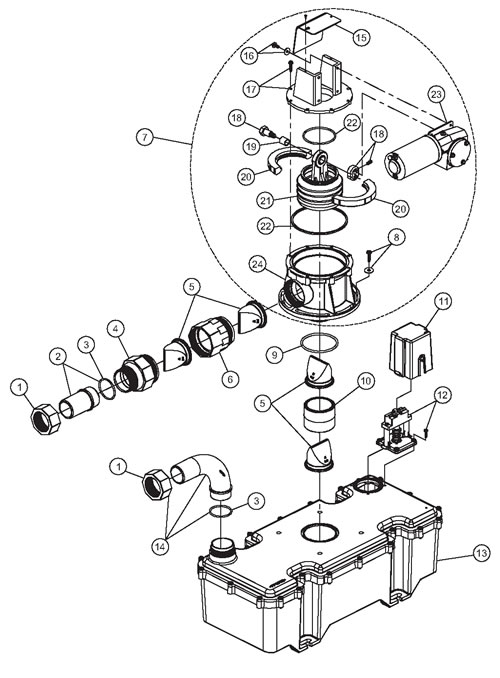

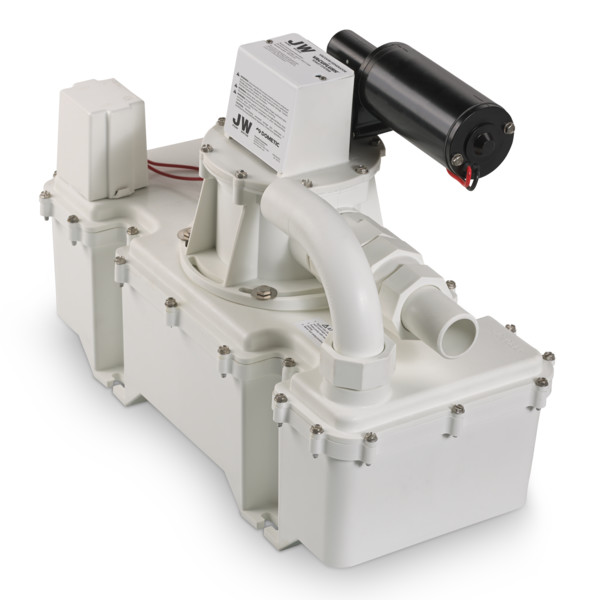

Vacuum Generator 4 (VG4)


 ITEM PART NO  DESCRIPTION  ITEM  PART NO  DESCRIPTION
1  385311212   SWIVEL NUT 1 1/2"  14   385311218   HOSE FITTING-ELBOW (includes item 1 & 3)
 2  385311211  HOSE FITTING-STRAIGHT (includes item 1 & 3)  15  385311231   JW-PUMP COVER
 3  385311238  O'RING 16  385311224   MOTOR MOUNTING HARDWARE
 4   385311210   2" TRANSITION FITTING TO 1-1/2" 17 385311225  TOP CLOSURE w/ MOUNTING SCREWS
5 385311208

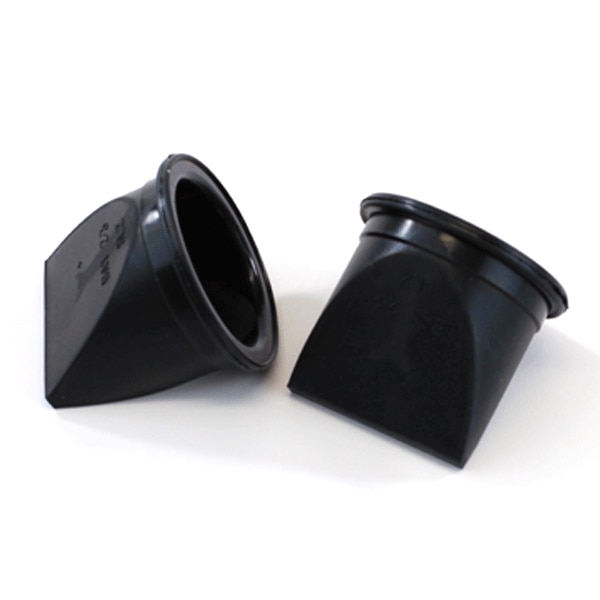

 385311581 		  2" DUCK BILL REPLACEMENT KIT ( 2 PACK )
 2" DUCK BILL REPLACEMENT KIT ( 4 PACK )		 18  385310644   KIT, ECCENTRIC/SCREW-S/T/J PUMP
 6   385311209   2" VALVE ADAPTER 19  385310242   BELLOWS BUSHING
  7   385311229  JW-PUMP REPLACEMENT 12VDC 20 385311226  BELLOWS CLAMP KIT
 385311230   JW-PUMP REPLACEMENT 24VDC 21  385230980   BELLOWS ASSY (includes item 19)
 8   385311220   J-PUMP MOUNTING HARDWARE 22  385310151   O'RING REPLACEMENT KIT
 9  385311213  O'RING   23    385311065   W-SERIES MOTOR REPLACEMENT 12VDC
10  385311214   2" DUCK BILL VALVE COLLAR  385311066   W-SERIES MOTOR REPLACEMENT 24VDC
11  385311215   VACUUM SWITCH COVER   23   385311423  W-SERIES MOTOR UPGRADE KIT 12VDC
12  385311216   VACUUM SWITCH ASSEMBLY 385311424  W-SERIES MOTOR UPGRADE KIT 24VDC
13  385311217   TANK ASSEMBLY  24   385311227   J-PUMP BODY
N/S 385311219  TANK SEAL (NOT SHOWN)
